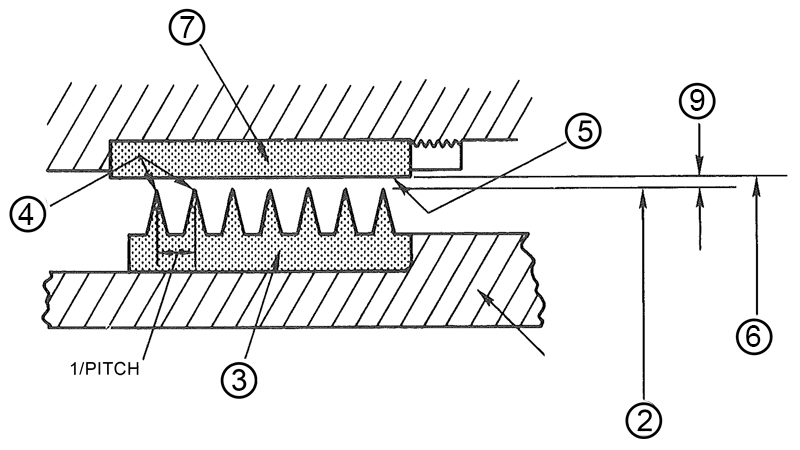

Typical Labyrinth Seals Straight-Thru Labyrinth
Sourced from the ASLE Seals Special Publication
![](/images/EndUser/Components/Seals/Nomenclature%20for%20Typical%20Labyrinth%20Seals%20with%20Straight%20Thru%20Labyrinth.jpg)
1. Straight-Thru Labyrinth
6. Knife-Edge Diameter
3. Knife-Edge Ring
4. Knife-Edges
5. Land
6. Land Diameter
7. Land Ring
8. Radial Clearance
9. Shaft
1. Straight-Thru Labyrinth: A type of labyrinth seal incorporating a constant clearance between knife-edges and a cylindrical sleeve of constant diameter.
2. Knife-Edge Diameter: The diameter which corresponds to the farthest outward protrusion, or to the farthest inward protrusion, of the knife-edge of a labyrinth seal.
3. Knife-Edge Ring: A ring shaped member in a labyrinth seal, in which the knife edges are machined or on which the knife-edges are mounted.
4. Knife-Edges: The narrow, circumferential knife-like edge or lip on a labyrinth seal which combined in series with other knife-edges, accomplished the throttling which achieves the seal.
5. Land: The cylindrical surface of the land ring in a labyrinth seal, which makes the closest approach to the knife-edges.
6. Land Diameter: The diameter of the cylindrical surface which is in closest proximity to the knife-edges and which, in combination with the knife-edges, effects the seal.
7. Land Ring: A ring shaped member in a labyrinth seal, which is either a straight-walled cylinder or a cylinder with axial steps. The land ring forms a clearance with the knife-edges effecting the seal.
8. Radial Clearance: Half of the total difference between the nominal land diameter and the nominal knife-edge diameter.
9. Shaft: Also Known as Bore Seal: A device the outside-diameter surface of which mates with a bore surface. It provides sealing between these two surfaces.
