The Use of Estolides to Produce High Performance Motor Oils

By Jakob Bredsguard, Chief Technical Officer, Biosynthetic Technologies | TLT CMF Plus November 2014

Typical Estolide Structure
Estolides are a class of synthetic high-performing compounds derived from renewable sources.

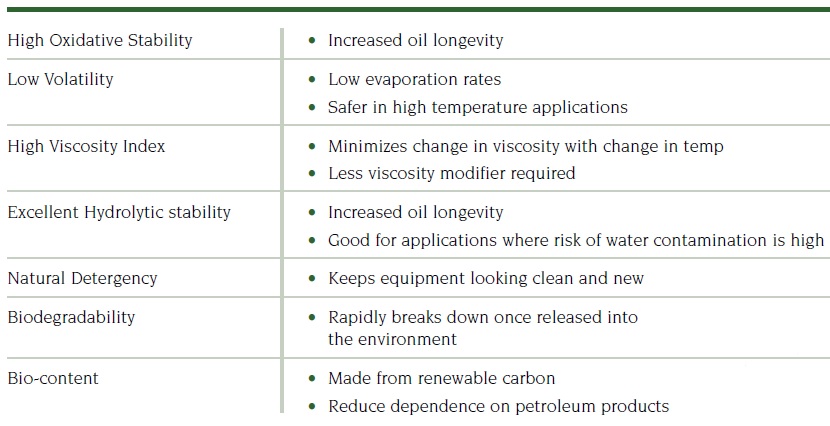

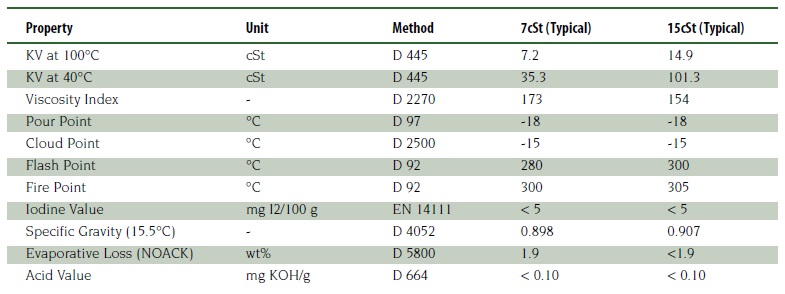

Estolide Properties

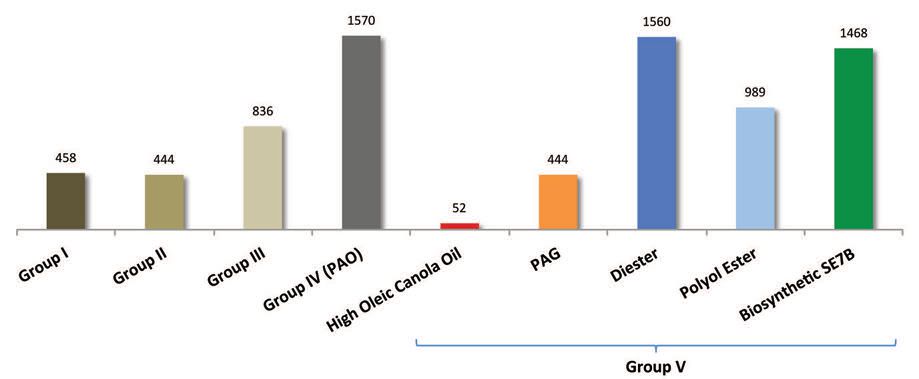

Oxidative Stability

Biosynthetic 7 cSt Estolide (SE7B)
Compared to Common Similar Viscosity Base Oils (6 to 8 cSt)
ASTM D2272, RPVOT (minutes)
Notes: Base oil samples are additized with 1% antioxidant (1:1 wt/wt aminic/phenolic blend).

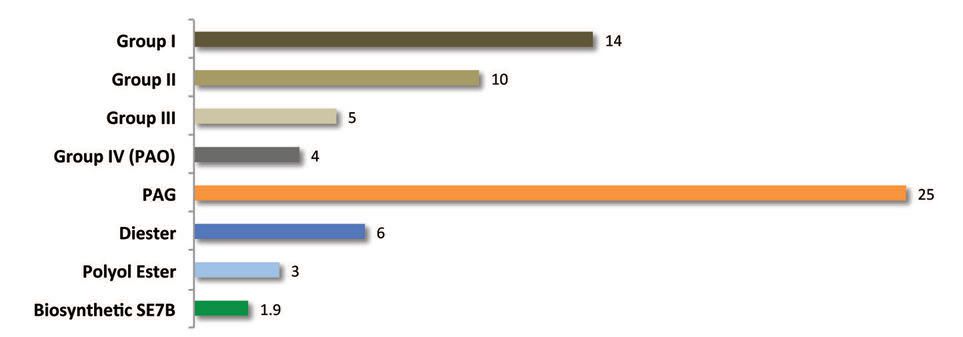

Evaporative Loss

NOACK of Biosynthetic 7 cSt Estolide (SE7B)
Compared to Common Low Viscosity Base Oils
ASTM D5800 (wt%)
Notes: (1) Base oil samples are unadditized.

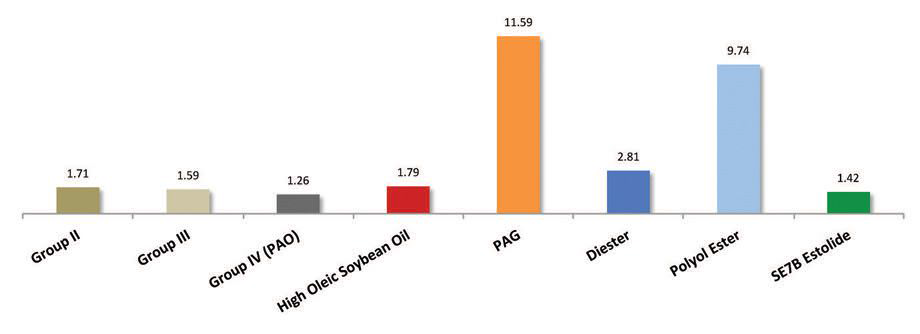

Hydrolytic Stability

Biosynthetic 7 cSt Estolide (SE7B)
Compared to Common Similar Viscosity Base Oils (6 to 8 cSt)
Modified ASTM D2619, Water Acidity Increase at 144 Hours (mg KOH/g)
Notes: (1) Base oil samples are unadditized.

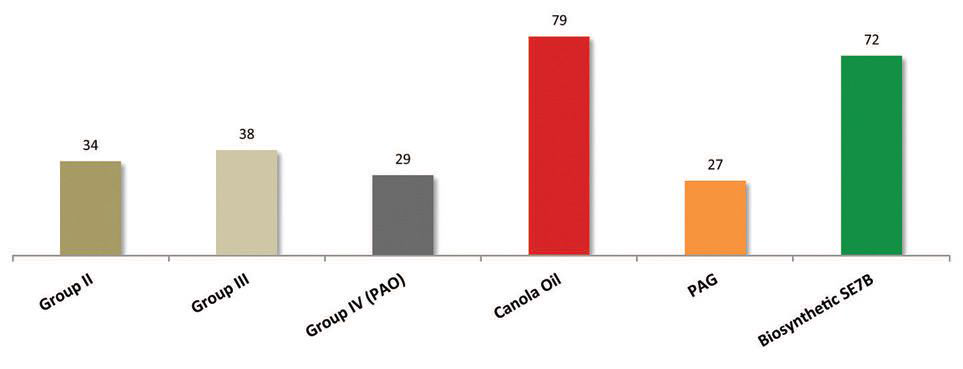

Biodegradability

Biodegradability of Biosynthetic SE7B
Compared to Common Low Viscosity Base Oils
OECD 301 (% Degraded in 28 Days)
Notes: Base oil samples are unadditized.

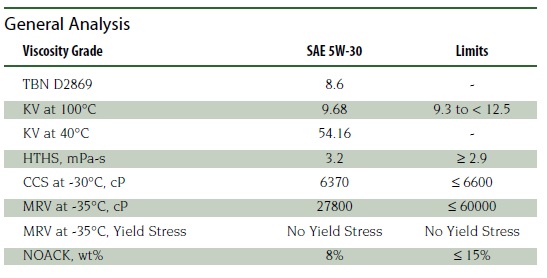

PCMO API SN ILSAC GF 5

DI package and VM provided by Infineum International Limited.

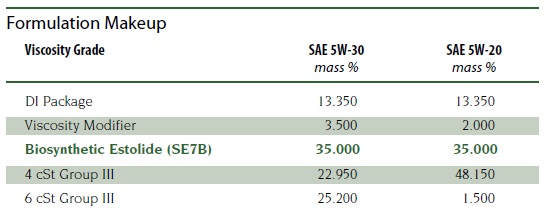

PCMO Formulation

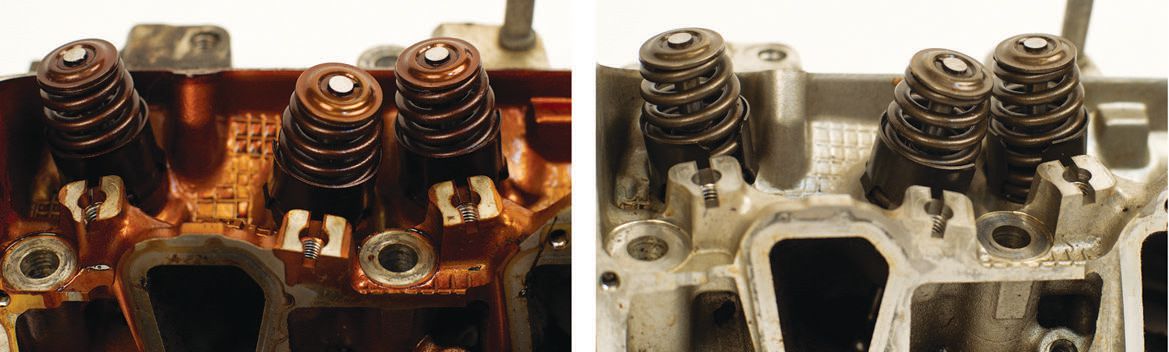

Engine Cleanliness
Field Trial Details
• 150,000 mile (241,402 km) taxi cab field trial under severe stop and go conditions in Las Vegas Nevada, USA
• First 100,000 miles (160,934 km) ≈ 84% estolide with additives
• Last 50,000 miles (80,467 km) ≈ 42% estolides, 42% GpIII, and additives
• Reference Oil – Minimum Quality GF-5 oil
• Typical drain interval 2 to 3 times recommended mileage
• Vehicle – Taxi Cab, Chevy Impala, 3.5 liter V6
• Engines run on estolide-based formulations had far less varnish


Other Applications
Estolides are now used by many major oil companies in a wide number of applications including:
• Motor Oil
• Hydraulic Fluid
• Grease
• Various Marine Applications
• Dielectric Fluid
• Metalworking Fluid
• And many others.

Conclusion
Estolides are a high-performing biosynthetic that offer an environmentally acceptable base oil option without giving up performance and in fact support efforts to further improve the quality of lubricants used in automotives.
